Product Summary
The ADSP-BF531SBBCZ400 is a processor. The ADSP-BF531SBBCZ400 is a member of the Blackfin family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). The ADSP-BF531SBBCZ400 combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture. The ADSP-BF531SBBCZ400 is completely code and pin compatible, differing only with respect to their performance and onchip memory.By integrating a rich set of industry-leading system peripherals and memory, The ADSP-BF531SBBCZ400 is the platform of choice for next generation applications that require RISC-like programmability, multimedia support, and leading-edge signal processing in one integrated package.
Parametrics
ADSP-BF531SBBCZ400 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDDINT): –0.3 V to +1.4 V; (2)External (I/O) Supply Voltage (VDDEXT): –0.5 V to +3.8 V; (3)Input Voltage1: –0.5 V to +3.8 V; (4)Output Voltage Swing: –0.5 V to VDDEXT+0.5 V; (5)Load Capacitance: 200 pF; (6)Storage Temperature Range: –65°C to +150°C; (7)Junction Temperature Under Bias: 125℃.
Features
ADSP-BF531SBBCZ400 features: (1)Up to 400MHz high performance Blackfin processor; (2)Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter; (3)RISC-like register and instruction model for ease of programming; (4)and compiler-friendly support; (5)Advanced debug, trace, and performance monitoring ; (6)0.8 V to 1.2 V core VDD with on-chip voltage regulation; (7)1.8 V, 2.5 V, and 3.3 V compliant I/O; (8)160-ball mini-BGA, 169-ball lead free PBGA, and 176-lead LQFP packages.

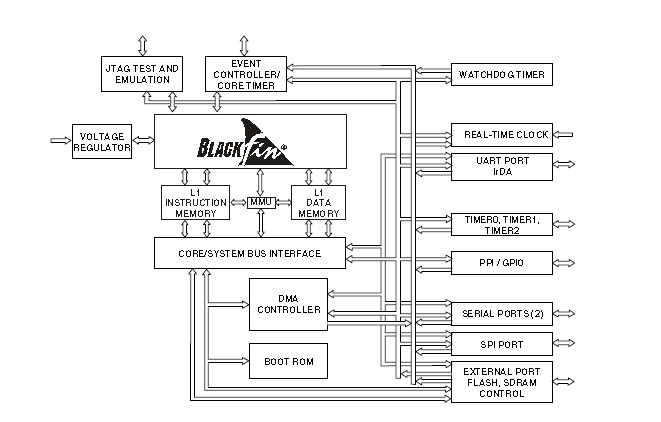

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADSP-BF531SBBCZ400 |
|
IC DSP CTLR 16 400MHZ 160CSPBGA |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
ADSP-2100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
ADSP-2101BG-100 |
|
IC DSP CONTROLLER 16BIT 68PGA |
Data Sheet |
|
|
||||||||||||||||
|
ADSP-2101BGZ-100 |
Analog Devices Inc |
IC DSP 16BIT CTRL 25MHZ 68-PGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
ADSP-2101BP-100 |
|
IC DSP CONTROLLER 16BIT 68PLCC |
Data Sheet |
|
|
||||||||||||||||
|
ADSP-2101BPZ-100 |
|
IC DSP SLG 16BIT 25MHZ 68-PLCC |
Data Sheet |
|
|
||||||||||||||||
|
ADSP-2101BS-100 |
Analog Devices Inc |
IC DSP CONTROLLER 16BIT 80PQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
