Product Summary

The AD8669ARZ is a rail-to-rail output amplifier that uses the Analog Devices, Inc., patented DigiTrim trimming ; trimming technique to achieve low offset voltage. The AD8669ARZ features an extended operating range with supply voltages up to 16 V. The AD8669ARZ also features low input bias current, low input offset voltage, and low current noise. The application of the AD8669ARZ are: sensor front ends; sransimpedance amplifiers electrometer applications; photodiode amplification; low power ADC drivers; medical diagnostic instruments; pH and ORP meters and probes; DAC or REF buffers.

Parametrics

AD8669ARZ absolute maximum ratings: (1)Supply Voltage: 18 V; (2)Input Voltage: 0.1 V to VSY; (3)Differential Input Voltage: 18 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: -60°C to +150°C; (6)Operating Temperature Range: -40°C to +125°C; (7)Junction Temperature Range: -65°C to +150°C; (8)Lead Temperature, Soldering (60 sec): -300°C.

Features

AD8669ARZ features: (1)Low offset voltage: 175 μV maximum ＠ VSY = 5 V; (2)Low supply current: 275 μA maximum per amplifier; (3)Single-supply operation: 5 V to 16 V; (4)Low noise: 23 nV/√Hz; (5)Low input bias current: 300 fA; (6)Unity-gain stable; (7)Small packages available: 3 mm × 3 mm, 8-lead LFCSP;8-lead MSOP; (8)Other packages: 8-lead SOIC;14-lead SOIC;14-lead TSSOP.

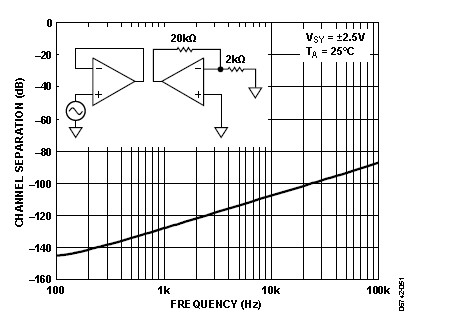

Diagrams

AD8669ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8669ARZ
AD8669ARZ

IC OPAMP GP R-R CMOS QUAD 14SOIC
Data Sheet
0-1: $3.65
1-10: $3.28
10-100: $2.70
100-250: $2.48
250-500: $2.26
500-1000: $1.97
1000-2500: $1.94
AD8669ARZ-REEL
AD8669ARZ-REEL

IC OPAMP GP R-R CMOS QUAD 14SOIC
Data Sheet
0-2500: $1.94
AD8669ARZ-REEL7
AD8669ARZ-REEL7

IC OPAMP GP R-R CMOS QUAD 14SOIC
Data Sheet
0-1000: $1.97
