LPC2106FBD48

Product Summary

The LPC2106FBD48 is a Single-chip 32-bit microcontroller. It is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 128 kB of embedded high speed flash memory. Due to the tiny size and low power consumption, the LPC2106FBD48 is ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. With a wide range of serial communications interfaces and on-chip SRAM options up to 64 kB, the LPC2106FBD48 is very well suited for communication gateways and protocol converters, soft modems, voice recognition and low end imaging, providing both large buffer size and high processing power.

Parametrics

LPC2106FBD48 absolute maximum ratings: (1)supply voltage (1.8 V):-0.5V to +2.5V; (2)supply voltage (3.3 V):-0.5V to +3.6V; (3)input voltage 5 V tolerant I/O pins:-0.5V to +6.0V; (4)other I/O pins:-0.5V to VDD(3V3)+0.5V; (5)supply current:100mA; (6)ground current:100mA; (7)storage temperature:-65℃ to +150℃; (8)total power dissipation (per package):1.5 W; (9)electrostatic discharge voltage:human body model all pins:-2000V to +2000V, machine model all pins:-200V to +200V.

Features

LPC2106FBD48 features: (1)Fast GPIO port enables port pin toggling up to 3.5 times faster than the original device and also allows for a port pin to be read at any time regardless of its function; (2)UART 0/1 include fractional baud rate generator, autobauding capabilities, and handshake flow-control fully implemented in hardware; (3)Buffered SSP serial controller supporting SPI, 4-wire SSI, and Microwire formats; (4)SPI programmable data length and master mode enhancement; (5)Diversified Code Read Protection (CRP) enables different security levels to be implemented; (6)General purpose timers can operate as external event counters; (7)16/32-bit ARM7TDMI-S processor; (8)16/32/64 kB on-chip static RAM; (9)128 kB on-chip flash program memory. 128-bit-wide interface/accelerator enables high speed 60 MHz operation; (10)60 MHz maximum CPU clock available from programmable on-chip Phase-Locked Loop with settling time of 100 μs; (11)The on-chip crystal oscillator should have an operating range of 1 MHz to 25 MHz; (12)Two low power modes, Idle and Power-down; (13)Processor wake-up from Power-down mode via external interrupt; (14)Individual enable/disable of peripheral functions for power optimization; (15)Dual power supply.

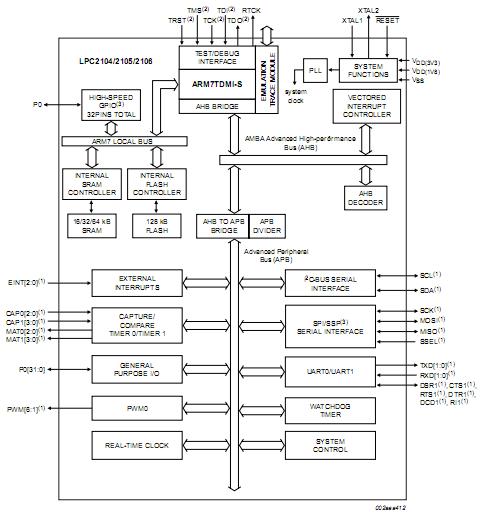

Diagrams
