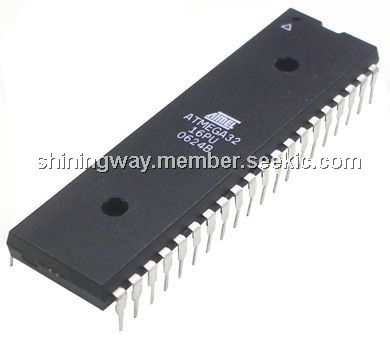

ATMEGA32A-PU

Product Summary

The ATMEGA32A-PU is an 8-bit microcontroller with 32k bytes in-system programmable flash. The ATMEGA32A-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA32A-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.The ATMEGA32A-PU is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, in-circuit emulators, and evaluation kits.

Parametrics

ATMEGA32A-PU absolute maximum ratings: (1)Operating Temperature: -55°C to +125°C ; (2)Storage Temperature: -65°C to +150°C; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA and 400.0 mA TQFP/MLF.

Features

ATMEGA32A-PU features: (1)High-performance, Low-power AVR 8-bit Microcontroller: Advanced RISC Architecture; 131 Powerful Instructions; Most Single-clock Cycle Execution; 32 x 8 General Purpose Working Registers; Fully Static Operation; Up to 16 MIPS Throughput at 16 MHz; On-chip 2-cycle Multiplier; (2)High Endurance Non-volatile Memory segments: 32K Bytes of In-System Self-programmable Flash program memory; 1024 Bytes EEPROM; 2K Byte Internal SRAM; Write/Erase Cycles: 10,000 Flash/100,000 EEPROM; Data retention: 20 years at 85℃/100 years at 25℃; Optional Boot Code Section with Independent Lock Bits; Programming Lock for Software Security; (3)JTAG (IEEE std. 1149.1 Compliant) Interface: Boundary-scan Capabilities According to the JTAG Standard; Extensive On-chip Debug Support; Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface; (4)Peripheral Features: Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes; One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; Real Time Counter with Separate Oscillator; Four PWM Channels; 8-channel, 10-bit ADC; 8 Single-ended Channels, 7 Differential Channels in TQFP Package Only,2 Differential Channels with Programmable Gain at 1x, 10x, or 200x; Byte-oriented Two-wire Serial Interface; Programmable Serial USART; Master/Slave SPI Serial Interface; Programmable Watchdog Timer with Separate On-chip Oscillator; On-chip Analog Comparator; (5)Special Microcontroller Features: Power-on Reset and Programmable Brown-out Detection; Internal Calibrated RC Oscillator; External and Internal Interrupt Sources; Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby; (6)and Extended Standby; (7)I/O and Packages: 32 Programmable I/O Lines; 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF; (8)Operating Voltages: 2.7 - 5.5V for ATmega32A; (9)Speed Grades: 0 - 16 MHz for ATmega32A; (10)Power Consumption at 1 MHz, 3V, 25℃ for ATmega32A: Active: 0.6 mA; Idle Mode: 0.2 mA; Power-down Mode: < 1μA.

Diagrams
